Design Center




. 3.20.

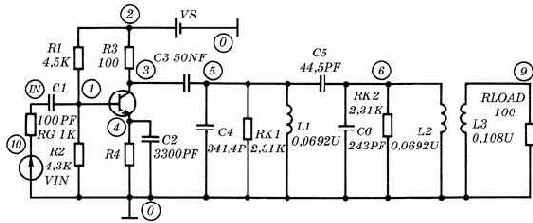

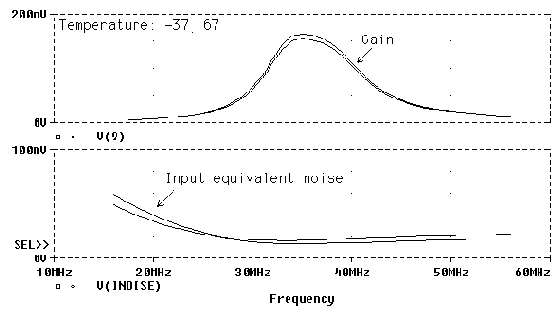

. 3.20 , PSpice. 315, LC-. 36 100 . L1C4, L2C6 C5. C3, RLOAD L2L3, 0,8. RK1, RK2

( , , ). 6 . .

band.cir :

BANDPASS FILTER

*AA LC-A

.OPTIONS ACCT LIST NODE OPTS NOPAGE RELTOL=1e-4

RG IN 10 1k

R1 2 1 MRES 4.5k

R2 1 0 MRES 1.3k

R3 2 3 100

R4 4 0 MRES 200

RK1 5 0 2.31k

RK2 6 0 2.31k

RLOAD 9 0 100

C1 IN 1 1000pF

C2 4 0 3300pF

C3 5 3 50nF

C4 5 0 241.4pF

C5 6 5 44.5pF

C6 6 0 243pF

L1 5 0 0.0692u

L2 6 0 0.0692u

L3 0 9 0.108u

K1 L2 L3 0.8

Q1 3 1 4 KT315A

VS 2 0 DC 6V

VIN 10 0 AC 1 SIN ( 0 0.05V 36MEG )
